11 inch Electric Scooter Hub Motor Kit 48V1000W1500W Engine

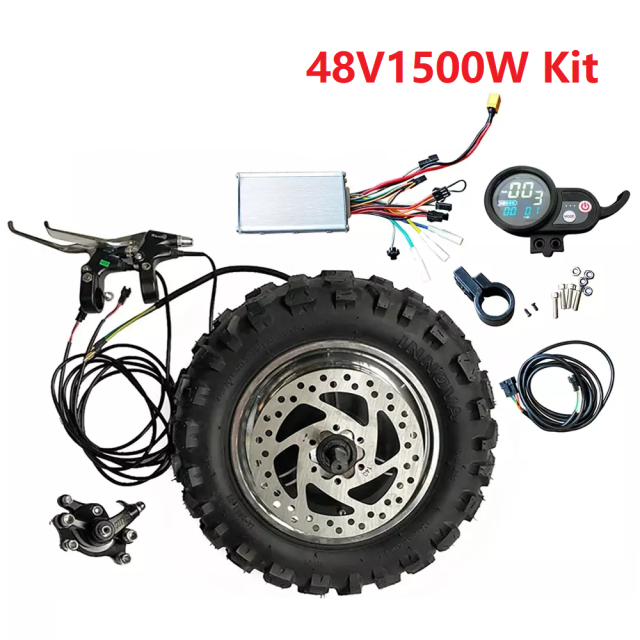

If you encounter any product problems, please contact us at the first time, we will help you solve your problems 100%, our working hours are 8:30am-18:00pm China time, 8:30pm- 6:00am U.S. time. Voltage: 48V Power: 1000W 1500W Speed: 60km/h no load weight Magnetic poles: 15 Note: for this one motor, the 11 inch size is the motor with tyre size. Not the tyre,  only  this one hub is not 11 inch. Hope you can check the size before you order it. A: If you only choose the hub motor, then is a gear hub motor wheel with tyre, 48V1000W. B: The whole kit. what is includ in the whole kit: 1*11 inch doubel shaft designhub motor with tire 1*matched controller 48V1000W 1500W 1* 48v LCD 1* Disc brake set 2* Brake lever The size of the hub motor: The way to connect the motor 3 phase sensor lines:
\\\\ Controller size: 30*50*90mm LCD display Features: With USB  charger port Two Bottons: Power botton and Fuction botton Long press power botton: Open the power Short press function botton: Shoe the TIME,TRIP,ODO,DST,VOL,CH2:00 In the TRIP, long press function botton: Single trip clear. Short press Power botton, and press function botton: Change the gear position How to setting the LCD display: Press power botton and function botton together: P0= wheel diameter setting P1= Undervoltage setting P2= Number of pole pairs settting P3= Speed signal selection setting P4= Kilometer/Mile selection setting P5= Non-zero start/Zero start selection setting P6= Cruise/No cruise selection setting P7= Soft start/Hard start selection settting The picture about the disc brake: Use the high quality INNOVA tyre Tyre model: 90/65-6.5 The disc brake suggest: 140mm with 6 poles.
\

Returns Accepted for this item if it's within 30 Days
